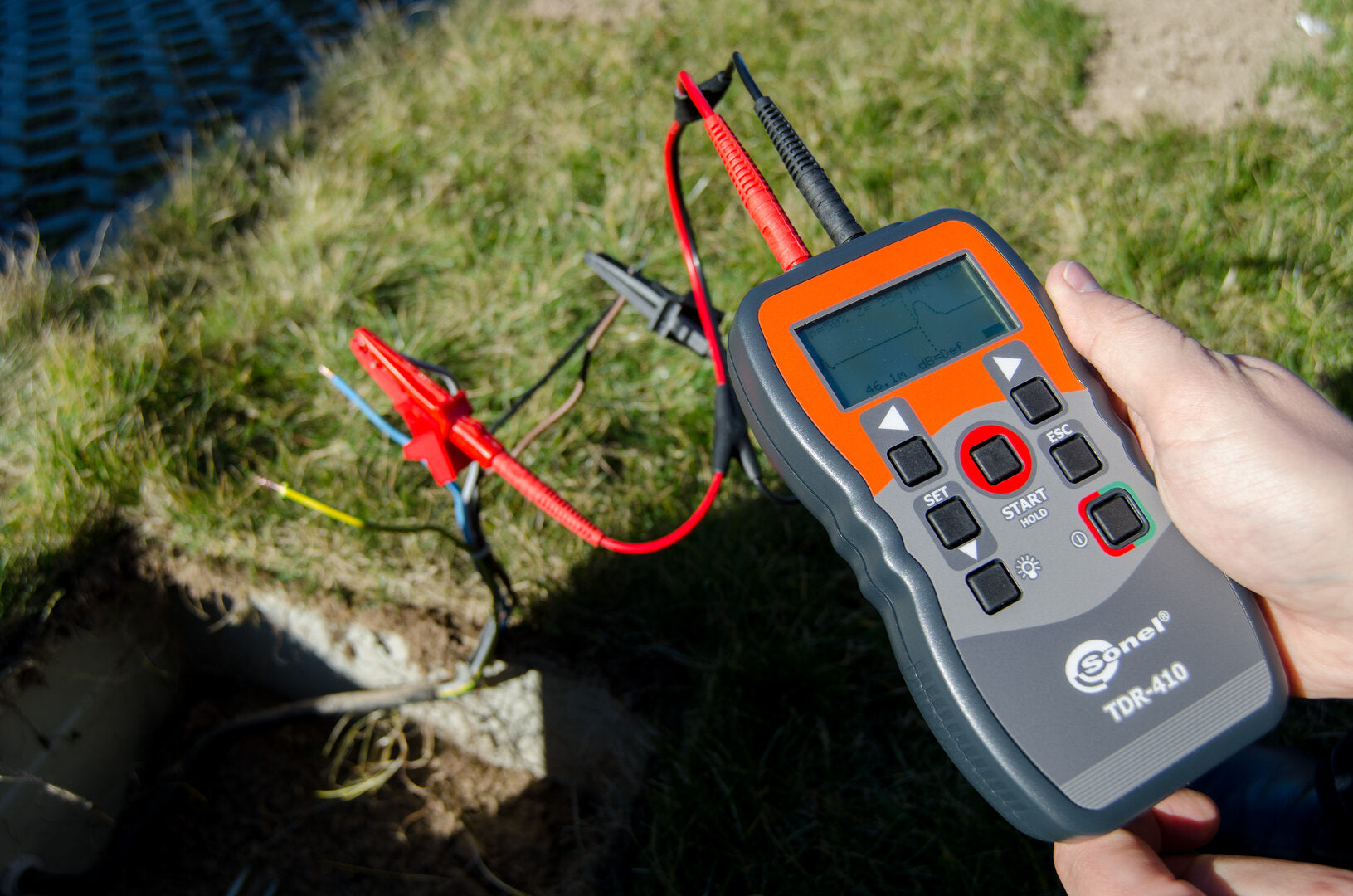

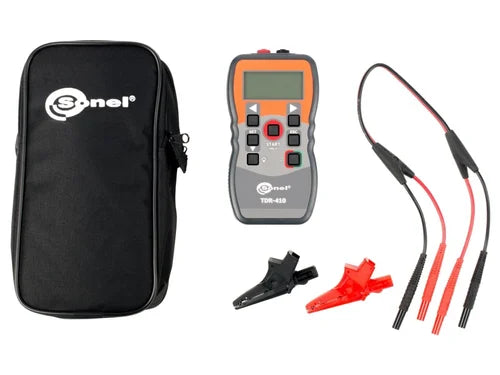

Sonel TDR-410 Cable Fault Locator

Description of Sonel TDR-410 Cable Fault Locator:

  • Location damaged power cables.
  • Fault location copper telecom cables.
  • Coaxial cable fault location.
  • Fault location wiring infrastructure.
  • Detection of breaks, short circuits, damage caused by dampness and other changes in impedance of the cable.
  • Graphic depiction of damage the cable with automatic indication the distance to fault on the screen.

Specifications of Sonel TDR-410 Cable Fault Locator:

Sensitivity Min 3 pixel return at 4km / 14000 ft. on 0.6 mm diameter, PE, TP
Range Selection Manual or Auto
Resolution Approx 1% of range
Battery Life 30 hours continuous scanning
Storage temperature -20º +70° C / -4 º to 158 ºF
Accuracy 1% of selected range
Cable Length 4 m / 14 ft
Meter Range 7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 4km
Operating Temperature -10º to 50ºC / 14 º to 122 ºF
Scan Rate 2 scans per second or scan held, pre-set for each range scale
Weight 350 g / 12 oz
Dimensions 165 x 90 x 37 mm / 6.5 x 3.5 x 1.5 ins
Power Supply 4 x 1.5 AA Alkaline cells, low battery indicator



Features:

  • automatic or manual mode:
    • the automatic fault location (AFL),
    • mode with manual range selection and sensitivity,
    • single measurement triggered manually or scanning continuous,
  • 11 available ranges from 7 m to 4000 m selected in manual mode or matched automatically,
  • maximum length of cable up to 4000 m one end of the cable,
  • "Dead zone" measure limited to 0.5 m,
  • 2.5 "LCD screen with backlight,
  • scan automatically or manually trigger,
  • sensitivity set manually or automatically adjusted,
  • adjustable impedance matching,
  • propagation coefficient adjustment 1% to 99%,
  • waterproof and resistant to mechanical housing.
  • small size and weight.
  • economical power system - 30 hours of continuously scan on one battery set.
