Controls (Italy) Ultrasonic Pulse Velocity Tester (UPV Tester) - Tell: 03219269422

Rs.895,000.00

The Control Ultrasonic Pulse Velocity Meter from Italy is a high-precision device used for non-destructive evaluation of concrete quality and uniformity. Ideal for detecting cracks, voids, and determining material integrity, it ensures reliable measurements of pulse velocity in concrete and other construction materials. FEATURES  For the non-destructive evaluation of concrete...

Real time Visitor right now

sold in last Hour

HURRY! ONLY LEFT IN STOCK

Dresses Size Chart

Dress Size Chart (Inch)
DRESSES
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 34"-35"
S 2-4 33"-34" 26"-27" 36"-37"
M 6-8 35"-36" 28"-29" 38"-39"
L 10-12 37"-39" 30"-32" 40"-42"
XL 14 40"-42" 33"-35" 43"-45"
Dress Size Chart (cm)
DRESSES
SIZE IN CM
SIZE US / CAN BUST WAIST HIPS
XS 0 78.7-81.2 60.9-63.5 86.3-88.9
S 2-4 83.8-86.3 66-68.5 91.4-93.9
M 6-8 88.9-91.4 71.1-73.6 96.5-99
L 10-12 93.9-99 76.2-81.2 101.6-106.6
XL 14 101.6-106.6 81.2-88.9 109.2-114.3

Swimwear Size Chart

Dress Size Chart (Inch)
SWIMWEAR
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 33"-34"
S 2 33"-34" 26"-27" 35"-37"
M 4 35"-36" 28"-29" 37"-38"
L 6 37"-39" 30"-32" 39"-41"
XL 8 40"-42" 33"-35" 42"-44"

Shoes Size Chart

US EURO UK AUS JAPAN CHINA
5 35-36 3 3.5 21.5 35
5.5 36 3.5 4 22 35.5
6 36-37 4 4.5 22.5 36
6.5 37 4.5 5 23 36.5
7 37-38 5 5.5 23.5 37
7.5 38 5.5 6 24 37.5
8 38-39 6 6.5 24.5 38
8.5 39 6.5 7 25 38.5
9 39-40 7 7.5 25.5 39
9.5 40 7.5 8 26 39.5
10 40-41 8 8.5 26.5 40
11 41-42 9 9.5 27.5 41

Delivery

    All orders shipped with UPS Express.

    Always free shipping for orders over US $250.

    All orders are shipped with a UPS tracking number.

Returns

    Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.

    Refunds will be charged back to the original form of payment used for purchase.

    Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.

    All sale items are final purchases.

Help

Give us a shout if you have any other questions and/or concerns.

Email:

Phone: +1 (23) 456 789

Ask a Question

The Control Ultrasonic Pulse Velocity Meter from Italy is a high-precision device used for non-destructive evaluation of concrete quality and uniformity. Ideal for detecting cracks, voids, and determining material integrity, it ensures reliable measurements of pulse velocity in concrete and other construction materials.

FEATURES

  • For the non-destructive evaluation of concrete homogeneity, determination of Dynamic Elastic Modulus, Dynamic Poisson coefficient, concrete resistivity (combined with other determinations).
  • Compliant to EN 12504-4, ASTM C597-09.
  • Ergonomic, compact and portable.
  • Battery operated.

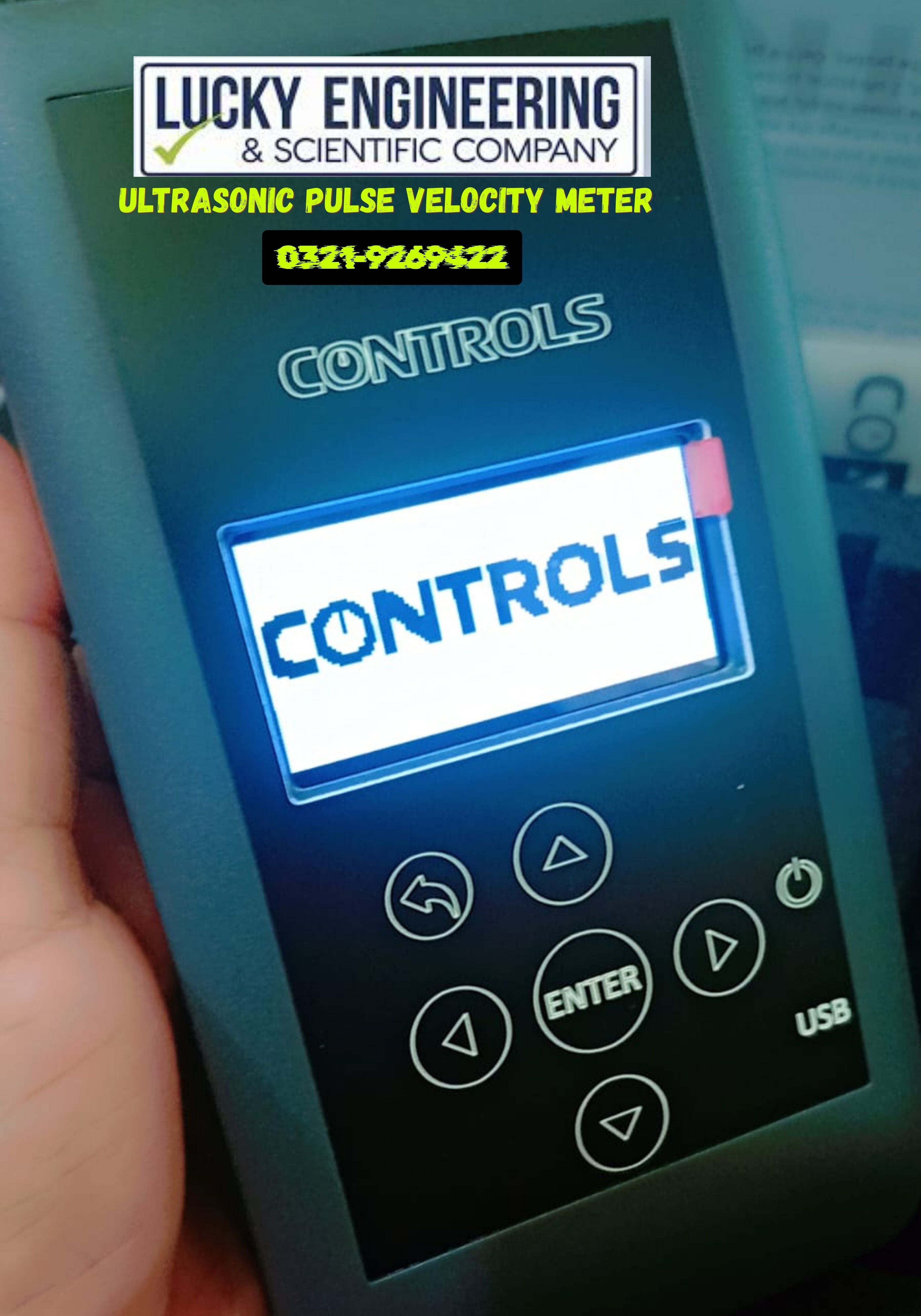

  • Large LCD monochromatic display (128 x 64 pixel).
  • Internal memory for storing up to 250 measurements.
  • Data export format: .csv, .txt.
  • Digital calibration using PVC probe (included).
  • Multi-voltage and multi-frequency battery charger with interchangeable plugs.

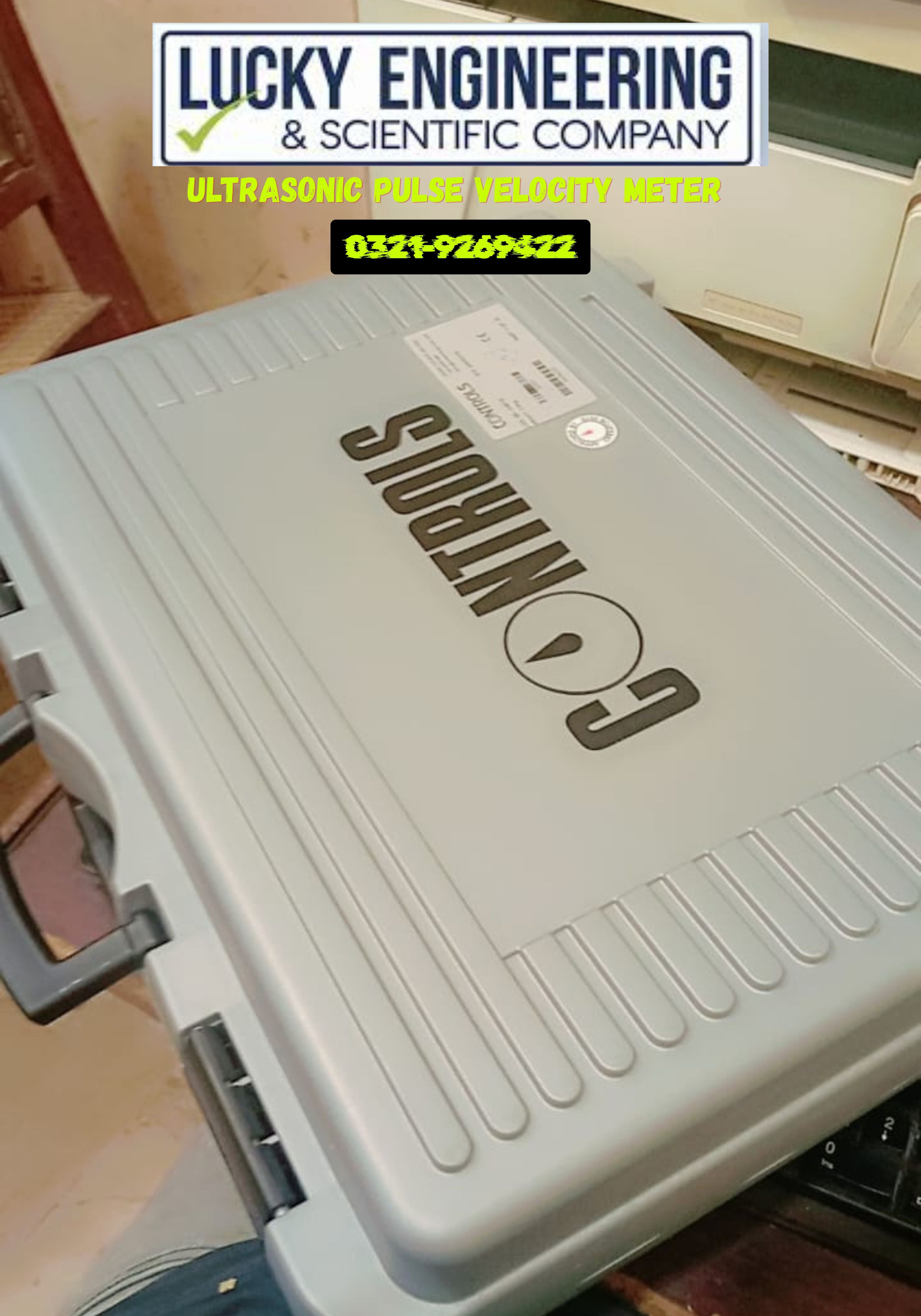

  • Polypropylene rigid case for transport of the instrument and accessories.

SPECIFICATION

  • Microprocessor incorporated.
  • Battery operated up to 6h by internal rechargeable battery pack (Li-ion, 3.7 V, 1800 mAh) and External charger.
  • Usable also during recharging time (about 2h if not in use).
  • USB output (type mini -B) to connect power charger and PC.
  • Connectable to oscilloscope.
  • Analysis of compression waves P and Time of fly and transmission velocity waves.
  • Pulse rate from 1 to 8 per second.
  • Resolution 0.1 microseconds and accuracy of 2%.
  • N.2 55kHz Transducers (diam 30mm, h 50mm).
  • 3m cable, BNC connector for connecting transducers.
  • Frequency range 20 to 150 kHz.
  • Environmental working conditions: 0 – 40°C, 0-90% RH.
  • Weight of the tester 0.3 kg, complete set 3 kg.

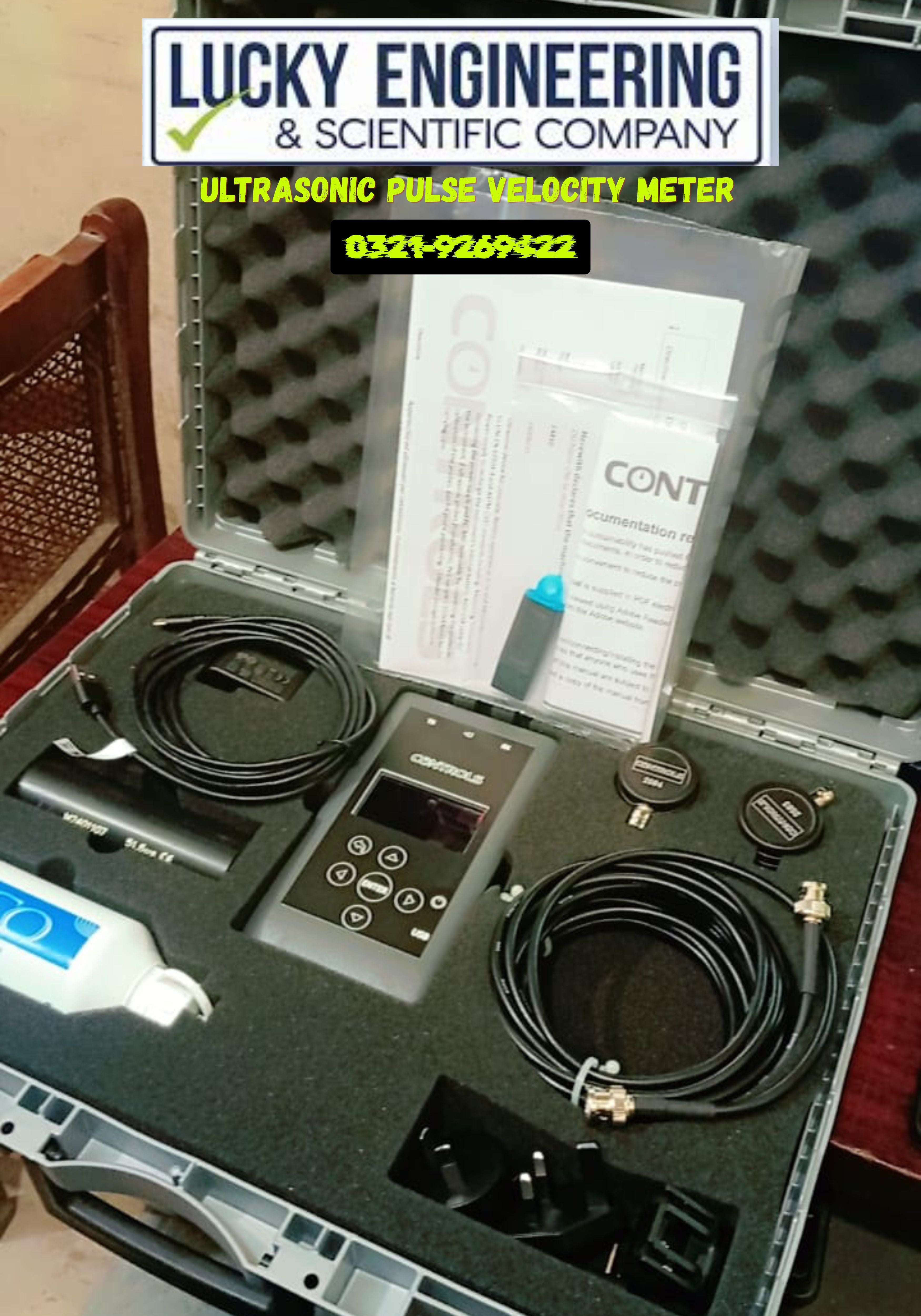

Included in the rigid case

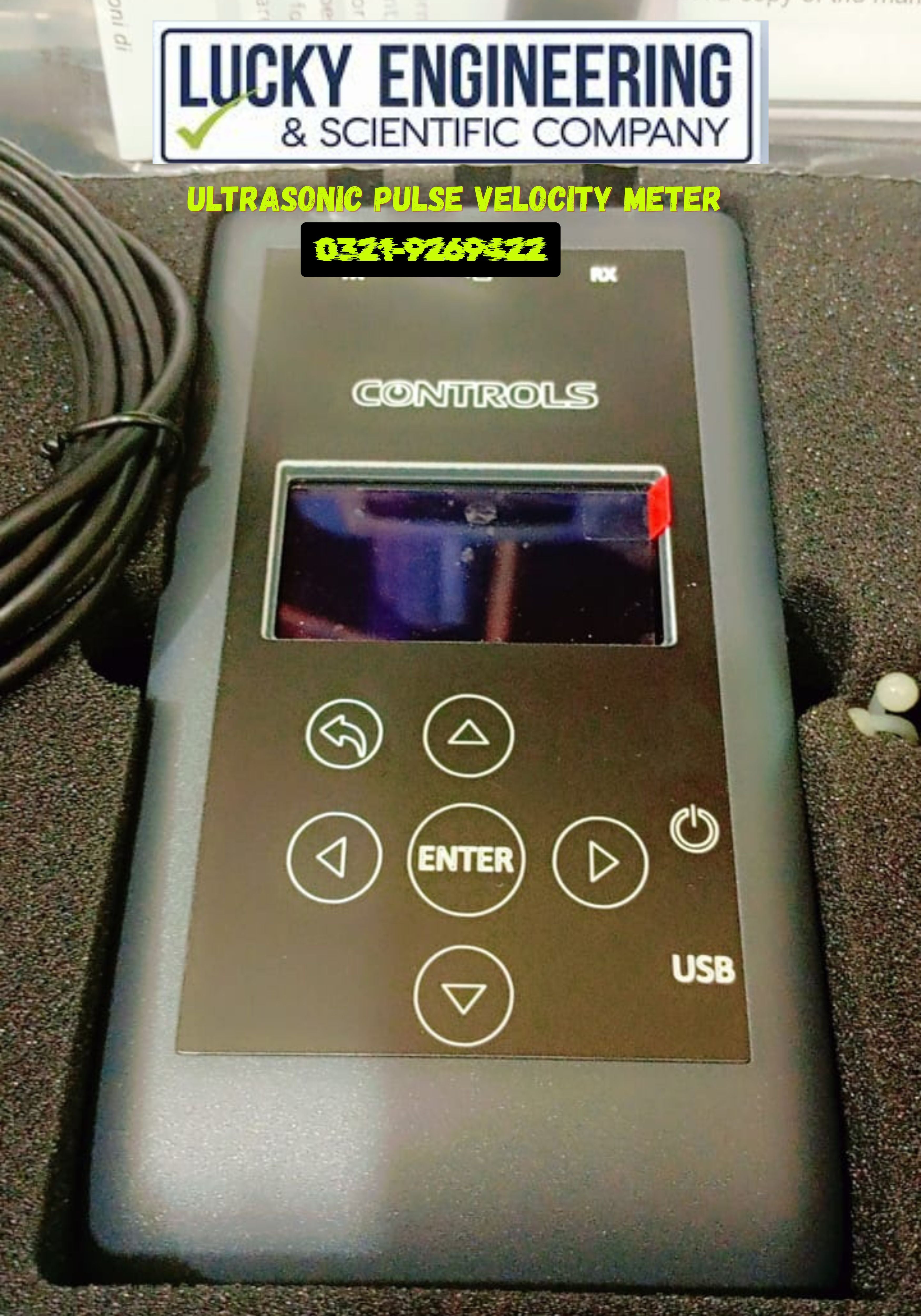

  • Ultrasonic pulse velocity tester.
  • Power charger to recharge its internal battery.
  • USB cable for PC connection.
  • USB key with documents and CSreader software for data management
  • BNC cables to connect probes to the instrument.

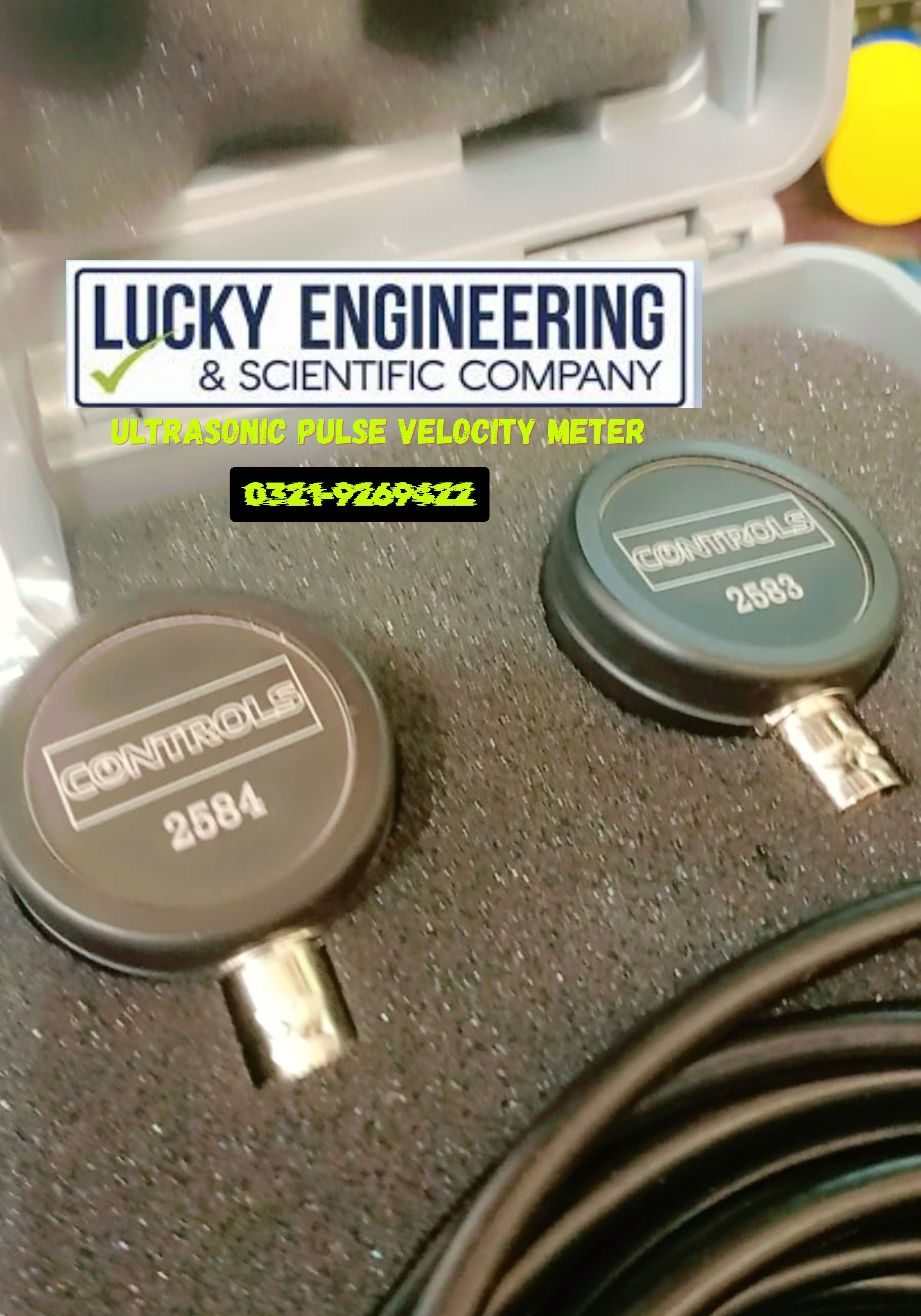

  • n° 2 ultrasonic probes (transducers).

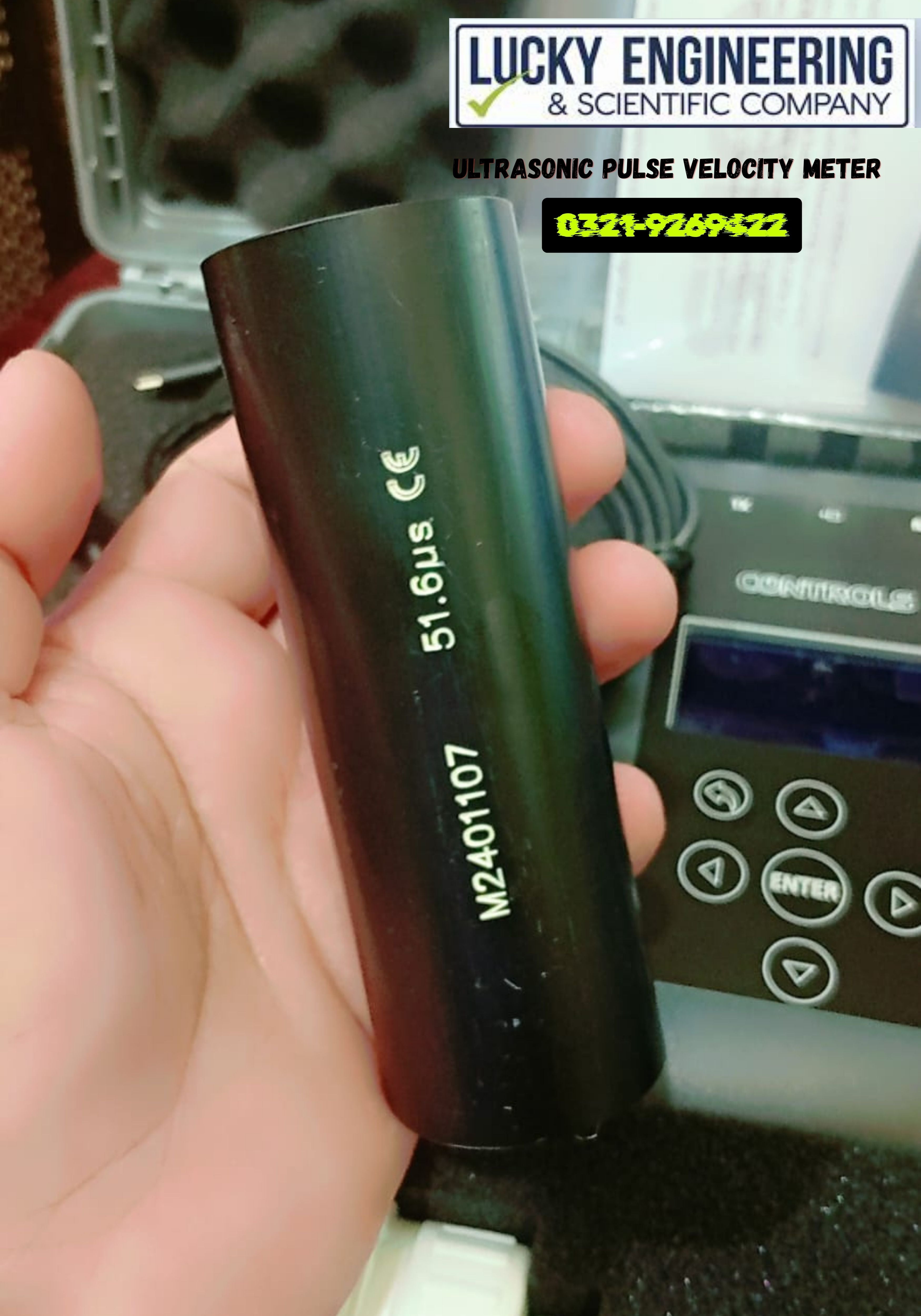

  • PVC sample (120mmx40mm) with known crossing speed for instrument calibration.

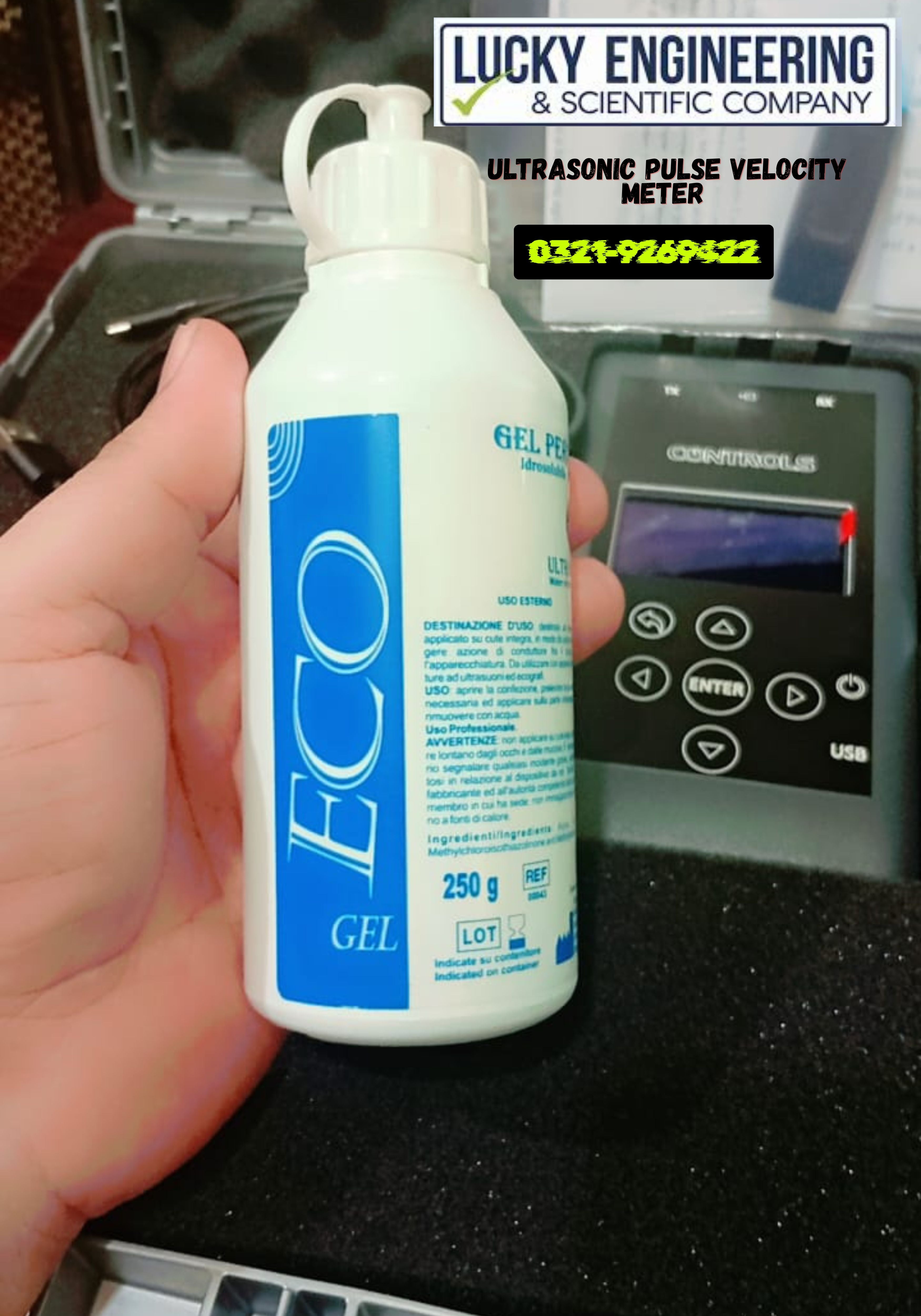

  • 250gr gel for fixing probes to structural element.
  • CSReader data storage software.
