The 104 Sonic Water Level Meter is a portable, acoustic ranging instrument designed to simply and quickly measure depth to static water level in a well, piezometer, sounding tube, or any closed pipe.

Features

Get a depth to static water level reading within seconds
No need to lower any equipment down the well/pipe
Measures static water level to 600 m (2000 ft)

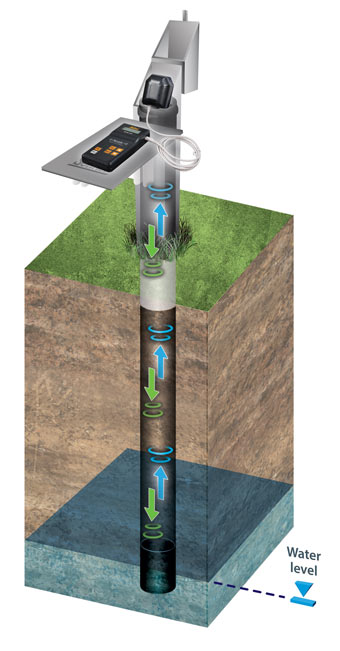

The Solinst Sonic Water Level Meter is a simple-to-use, handheld, portable unit. It consists of a Control Unit and connected Probe, and is supplied with a plastic cover for larger wells and a Solinst Field Bag. The Sonic Water Level Meter Probe transmits a sound wave into the well or pipe and measures the time for the pulse to return after contacting the water. Readings are shown on the clear LCD display on the Control Unit. The Sonic Water Level Meter allows the programming of parameters like well diameter, offsets, temperature, etc. Maximum and minimum detection ranges can also be set to ignore any interference from known well features or obstructions, and to narrow down the measurement range for obtaining the most accurate water level readings possible.

Applications

The Sonic Water Level Meter is ideal for depth to static water level detection in any well, piezometer, sounding tube, or closed pipe

Use the Sonic Water Level Meter in wells and boreholes that are difficult to access due to crooked pipes, narrow tubes, instrumentation, or other obstructions

Sonic Water Level Meters are helpful when the annulus space between well casing and a pump is too small for other Water Level Meters

Use in contaminated or corrosive environments where you do not want to lower equipment down well are ideal use cases for Sonic Water Level Meters

Landfills, waste management sites, toxic or hazardous waste disposal sites, wastewater operations, mine tailings sites, mineral or oil and gas extraction projects, nuclear power sites, remediation projects, Brownfield sites, contaminated spill sites, leaking underground storage tanks, manufacturing or industrial waste dumps, over-fertilized agricultural areas, and fields with excessive pesticides

Sonic Water Level Meters are great when you don't have the time to decontaminate measurement equipment or your well

If you want to obtain very quick depth to water level measurement to determine the placement of other instrumentation, the Solinst Sonic Water Level Meter is perfect
